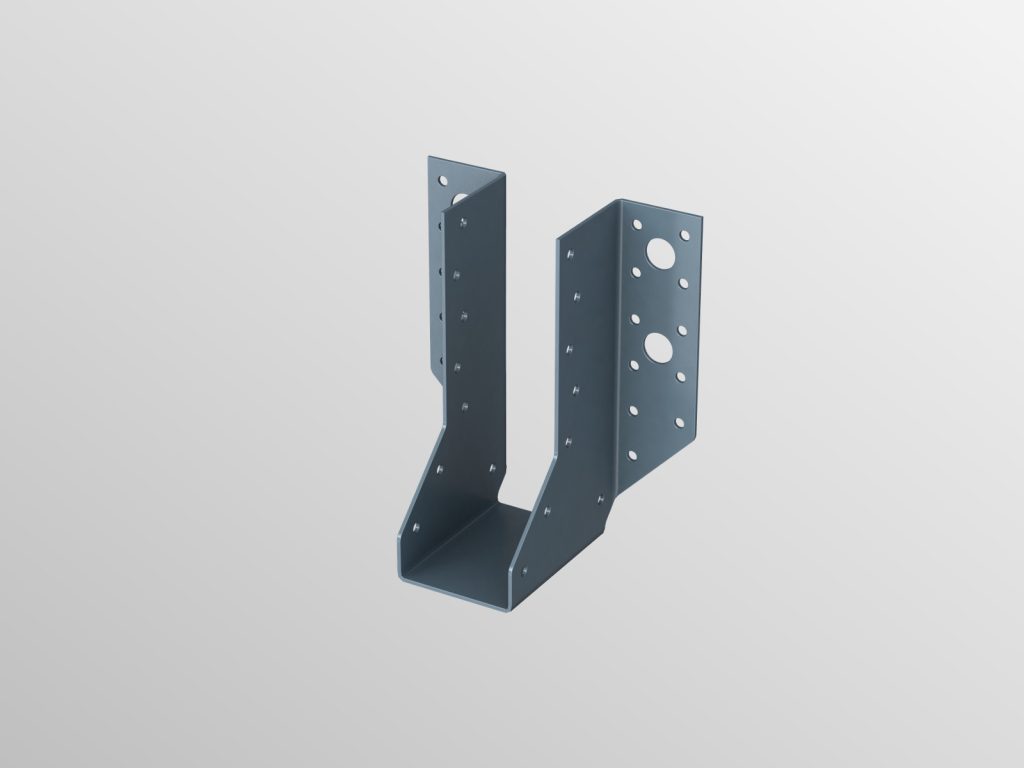

For use in heavy duty applications such as multiple truss units, main trimmer joists, purlin to beam connections or similar situations where unusually heavy loads occur.
| Product Details | ||||
|---|---|---|---|---|
| Product code | Dimensions (mm) | Box Quantities | ||
| W | L | B | ||
| GC-MTH/340/38 | 38 | 153 | 75 | 50 |
| GC-MTH/340/44 | 44 | 150 | 50 | |
| GC-MTH/340/47 | 47 | 148 | 50 | |
| GC-MTH/340/50 | 50 | 147 | 50 | |
Special non-standard widths available to order.
For use in heavy duty applications such as multiple truss units, main trimmer joists, purlin to beam connections or similar situations where unusually heavy loads occur. Bearing surface on all multi-truss hangers is 75mm.
