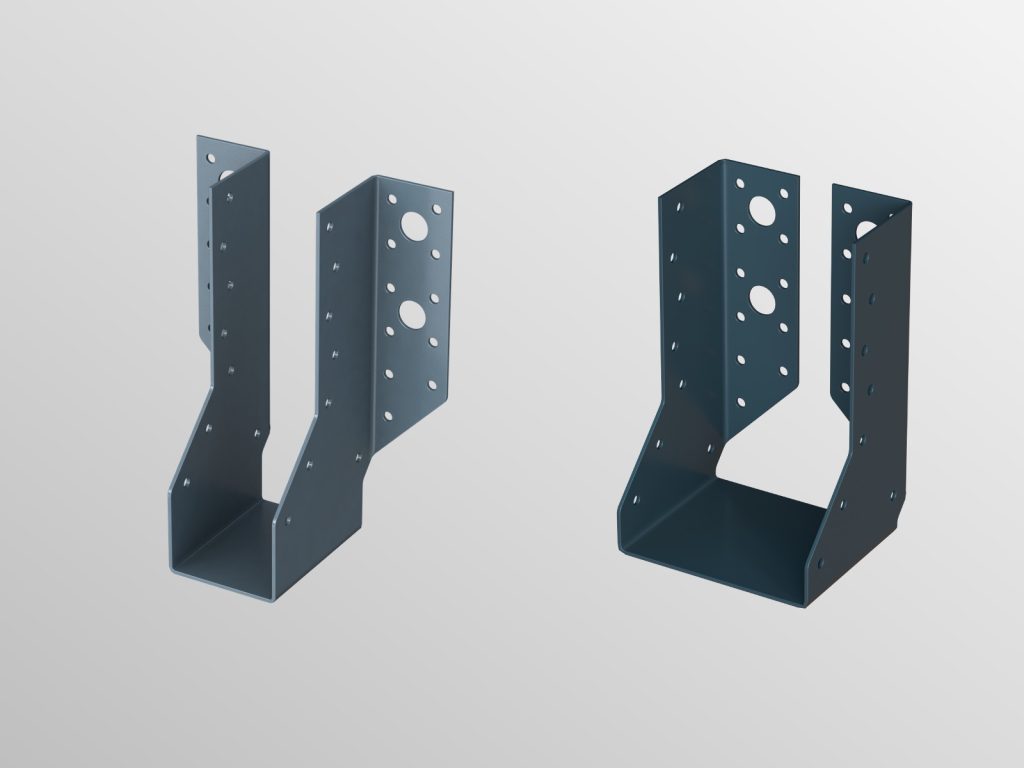

GC-MTH/380 Multi-Truss Hanger (Anthracite Grey) & GC-MTH/CF/380 concealed flange (Anthracite Grey)

*Available as GC-MTH/CF/380 with face plates folded inwards for concealed fixings.

Special non-standard widths available to order.

For use in heavy duty applications such as multiple truss units, main trimmer joists, purlin to beam connections or similar situations where unusually heavy loads occur. Bearing surface on all multi-truss hangers is 75mm.

• Material – Manufactured from 1.5mm thick galvanised steel to BS EN 10346 + G275 and powder-coated after fabrication.
• Fixing – Fix using either Type A or Type B fixings in all pre-punched holes:
  • Type A, 30mm x 3.75mm Sheradised Square Twist Nails usually supplied loose for manual fixing.
  • Type B, 35mm x 3.75mm Sheradised Square Twist Nails usually collated for nail gun fixing.
