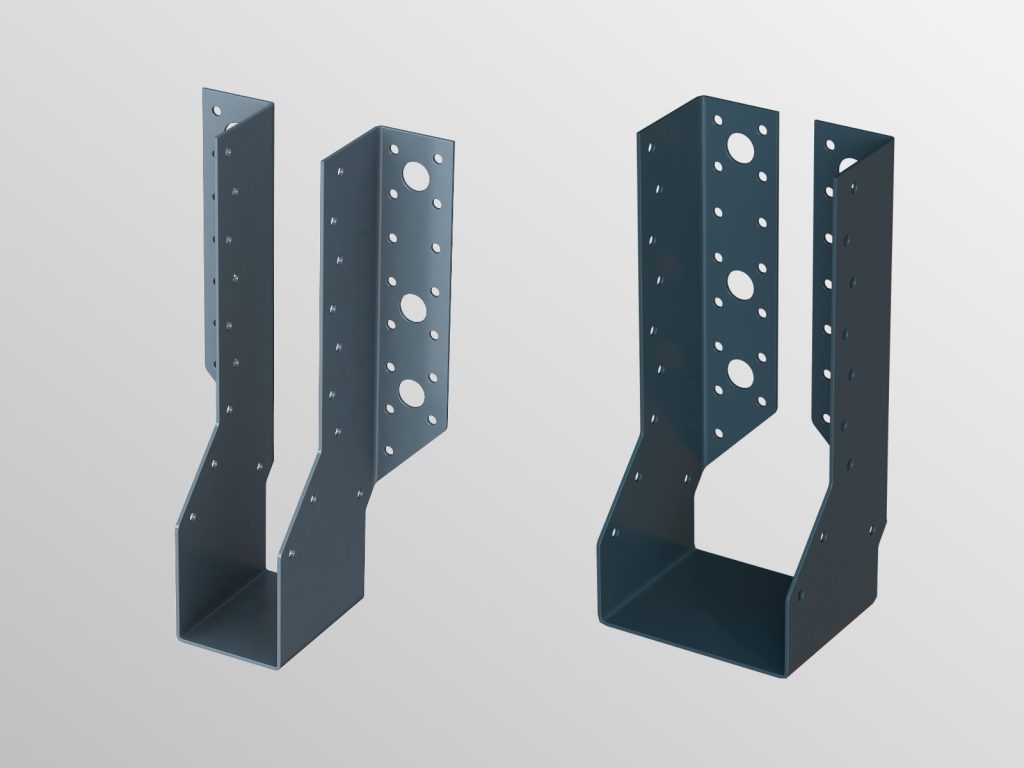

For use in heavy duty applications such as multiple truss units, main trimmer joists, purlin to beam connections or similar situations where unusually heavy loads occur. Also available as GC-MTH/CF/500 with faces plates folded inwards for concealed fixings.
| Product Details | ||||
|---|---|---|---|---|
| Product code | Dimensions (mm) | Box Quantities | ||
| W | L | B | ||
| GC-MTH/500/38 | 38 | 231 | 75 | 25 |
| GC-MTH/500/44 | 44 | 228 | 25 | |
| GC-MTH/500/47 | 47 | 226 | 25 | |
| GC-MTH/500/50 | 50 | 225 | 25 | |
| GC-MTH/500/63 | 63 | 218 | 25 | |
| GC-MTH/500/75 | 75 | 212 | 25 | |
| GC-MTH/500/88 | 88 | 206 | 25 | |
| GC-MTH/500/91 | 91 | 204 | 25 | |
| GC-MTH/500/100* | 100 | 200 | 25 | |
| GC-MTH/500/125* | 125 | 187 | 25 | |
| GC-MTH/500/135* | 135 | 183 | 25 | |
| GC-MTH/500/144* | 144 | 178 | 25 | |
| GC-MTH/500/150* | 150 | 175 | 25 | |
*Available as GC-MTH/CF/500 with face plates folded inwards for concealed fixings.
Special non-standard widths available to order.
For use in heavy duty applications such as multiple truss units, main trimmer joists, purlin to beam connections or similar situations where unusually heavy loads occur. Bearing surface on all multi-truss hangers is 75mm.
