V Vertical (Light Duty) Restraint Straps

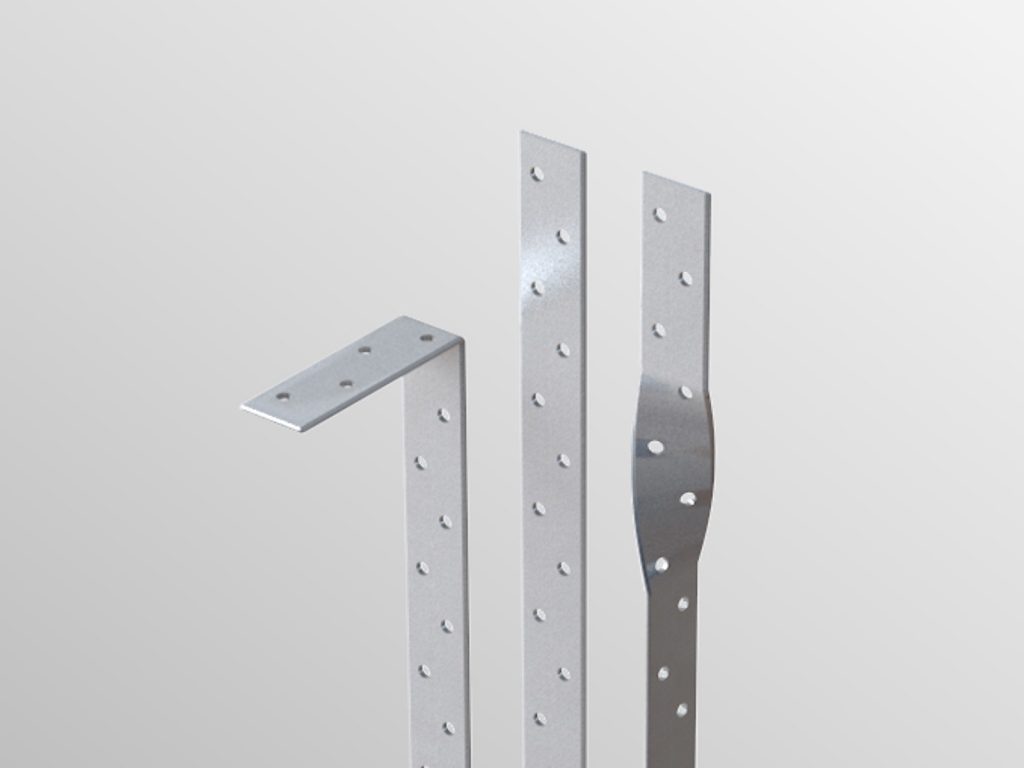

Light duty restraint straps can be used for vertical restraint applications, such as holding down wall plates to masonry. These multi-holed straps are supplied in 100mm increments with 6mm holes at 25mm offset centres. Available straight, bent or twisted or in combinations as required in galvanised or stainless steel.

UKCA logo
CE logo

Downloads

Please specify the following when ordering:
Product code / Girth / Bend or Twist position
e.g. V / 1200 / B150 = Vertical / 1200 Girth / Bend150
Product code V = Vertical (light duty)
Product code SSV = Stainless Steel Vertical (light duty)
Girth = Overall length of strap, available in 100mm increments from 100mm to 3000mm
B or T = Bend or Twist Position (twist is approx. 50mm long)

(NOTE: The above code structure replaces the previous LDMH and SLDMH codes)

  • Standard product includes one bend or twist. Additional bends/ twists / fishtails charged extra. Increments of less than 100mm will be charged at the full rate e.g. 1050mm charged at 1100mm rate.
  • Designed in accordance with The Building Regulations, Meets the requirements of BS EN 845-1 for vertical and horizontal restraint and tested to BS EN845-1.
  • Fixing – Restraint straps should be fixed using either 50mm long no. 12 woodscrews (using wall plugs in masonry for vertical restraint) or 75mm x 4.0mm diameter galvanised nails into timber. Stainless steel screws or nails must be used when fixing stainless steel straps. Supplied in packs of 20.
  • Dimensions – Thickness 2.3mm, Width 27mm, Length 100mm increments from 100mm to 3000mm.
  • Characteristic Capacity – 4 kN.
Bent Variations
Product Code Length (mm) X Bend (mm) Y Total Length (mm) Pack Size
V/400/B100 300 100 400 20
V/600/B100 500 100 600 20
V/900/B100 800 100 900 20
V/1000/B100 900 100 1000 20
V/1200/B100 1100 100 1200 20
Flat Variations
Product Code Total Length (mm) Pack Size
V/200/F 200 20
V/300/F 300 20
V/900/F 900 20
V/1000/F 1000 20
Twist Variations
Product Code Length (mm) X Twist (mm) Y Total Length (mm) Pack Size
V/900/T 800 100 900 20
V/900/T150 750 150 900 20
V/1000/T 900 100 1000 20
