VA7/VA7 PE

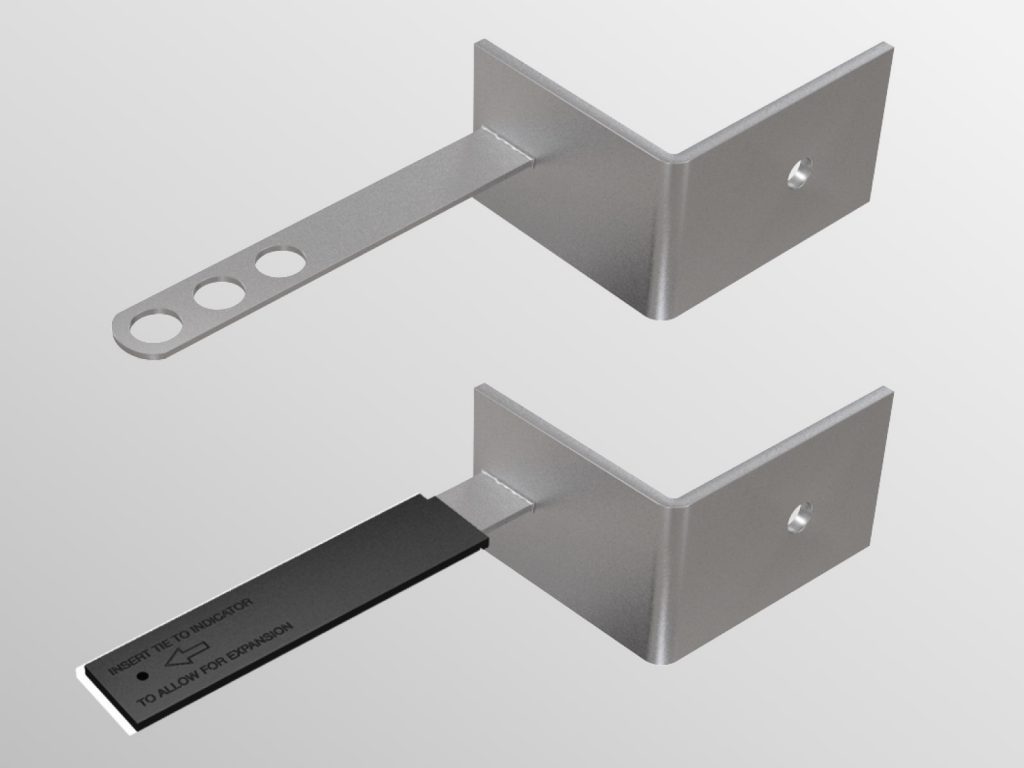

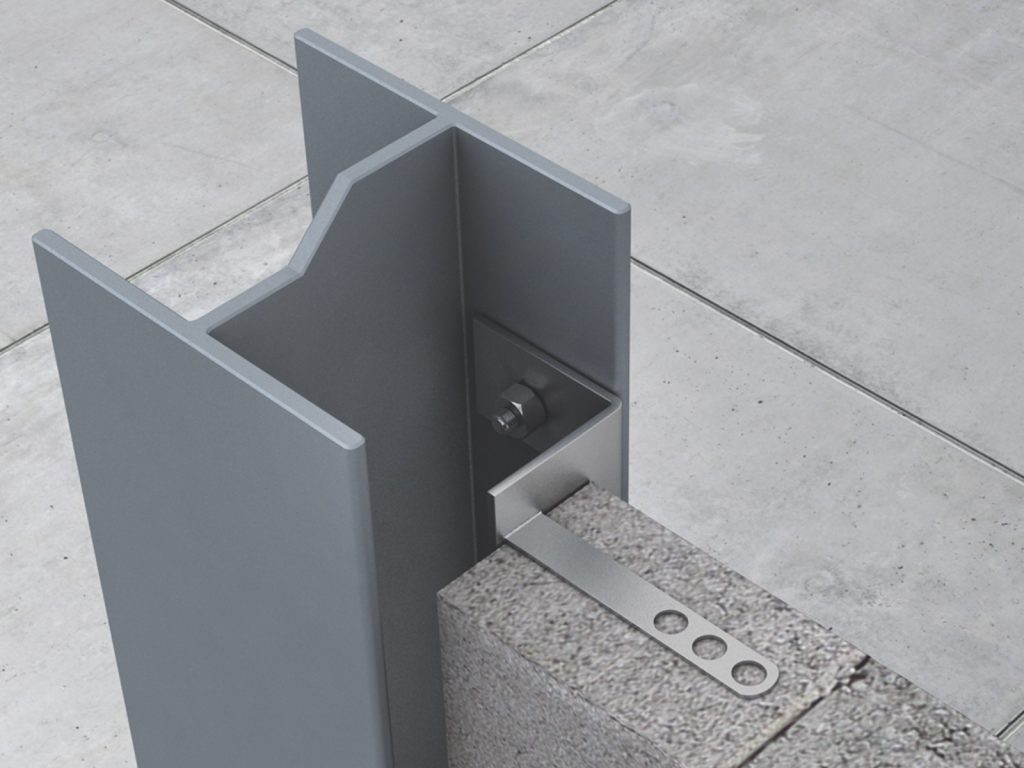

For offset fixing where masonry is not in line with the steel column. Angle with 7mm fixing hole as standard with fixed projection tie. Debonded plain end projection also available (VA7PE)

Downloads

Code	Size (Projection)	Units
VA7-100-STST	100mm	100 Box
VA7-125-STST	125mm	100 Box
VA7-115-STST	150mm	100 Box
VA7-175-STST	175mm	100 Box
VA7-200-STST	200mm	100 Box
VA7PE-100-STST	100mm	100 Box
VA7PE-125-STST	125mm	100 Box
VA7PE-150-STST	150mm	100 Box
VA7PE-175-STST	175mm	100 Box
VA7PE-200-STST	200mm	100 Box

Angle Size
60mm x 55mm x 40mm wide

Design – For offset fixing where masonry is not in line with the steel column. Angle with 7mm fixing hole as standard with fixed projection tie. Debonded plain end projection also available (VA7PE).
Material – Manufactured from grade 304 stainless steel.
Behaviour in relation to fire – Non combustible (as defined in the national Building Regulations).
Durability – Excellent corrosion resistance and a service life of not less than 60 years.
