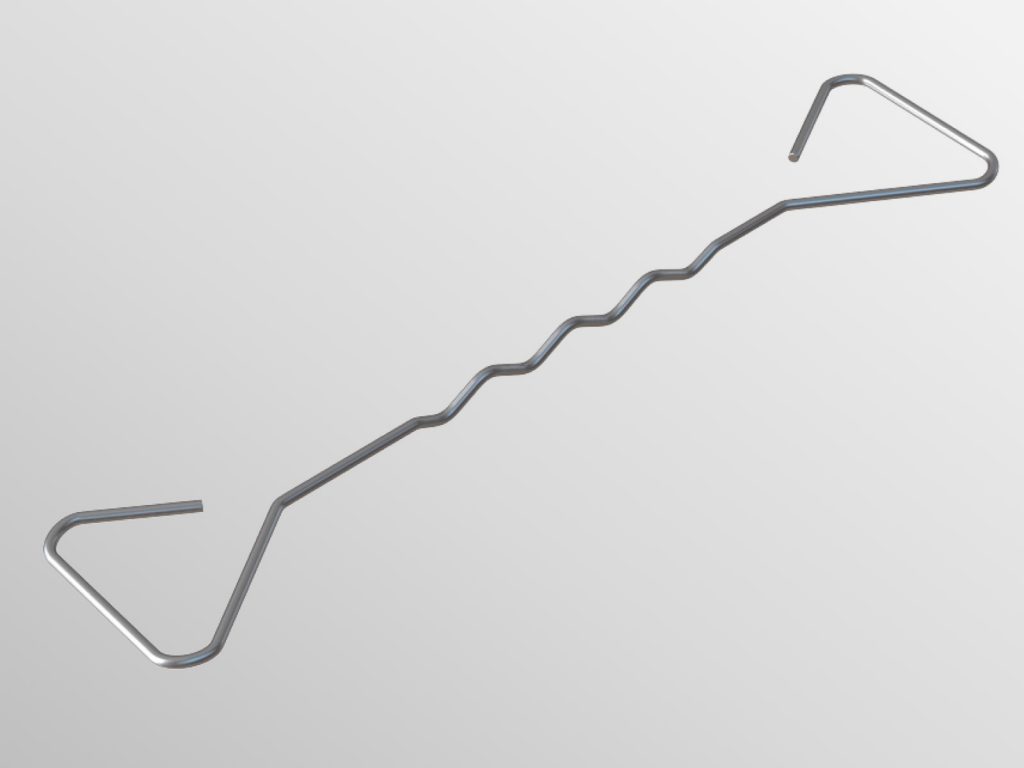

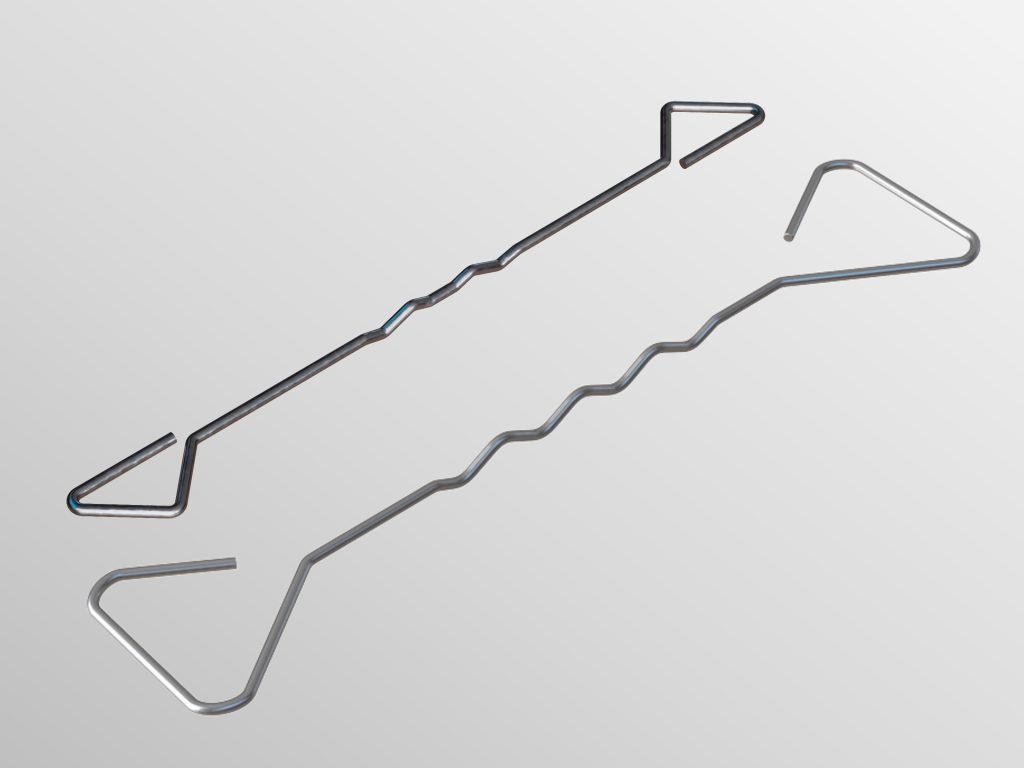

VE2 General Purpose Wall Ties

General-purpose wall tie used in small commercial buildings and domestic dwellings. Suitable for buildings with a maximum height of 15m and a cavity width of 126-150mm. (Type 2 Wall Tie)

Downloads

Code	Length	Cavity	Units
VE2-275-STST	275mm	126-150mm	250 Bundle

BBA Approved general purpose wall ties (Agrément Certificate: 17/5462).
Application – A general-purpose wall tie for applications such as small commercial buildings and domestic properties. They are suitable for buildings with a maximum height if 15m and for flat sites where the basic wind speed is up to 31m/s and altitude is not greater than 150m above sea level.
Design – Multidrip feature to prevent moisture travelling across the cavity, it can be installed either way up
Material – Manufactured from grade 304 stainless steel
Behaviour in relation to fire – non combustible (as defined in the national Building Regulations)
Durability – excellent corrosion resistance and a service life of not less than 60 years
Thermal performance – In situations where thermal losses through ties need to be taken into account, the products will adequately resist thermal transmittance through a wall cavity
Compliance – Tested as Type B (sound) and as Type 2 (strength) to BS EN 845-1

VE2 General Purpose Wall Ties
