VW Vista Weld

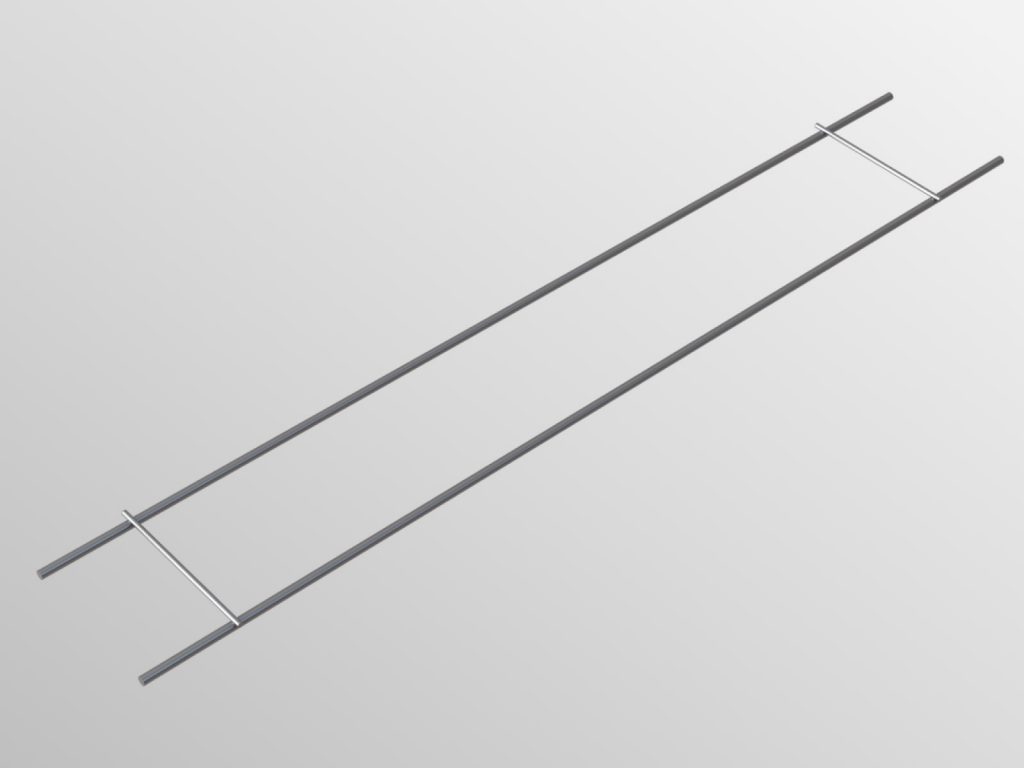

Vista Weld is a welded ladder type Bed Joint Reinforcement with 3.6mm outer wires, generally used as a structural product, also ideal for crack control. Available in numerous widths to suit any brick and block thickness. Available in stainless or galvanised steel.

Downloads

Code	Product Width	Wall Width	Length	Units
VW-060-STST	60mm	100mm	2700mm	10 Pack
VW-100-STST	100mm	140mm	2700mm	10 Pack
VW-150-STST	150mm	200mm	2700mm	10 Pack
VW-175-STST	175mm	215mm	2700mm	10 pack

Design – Vista Weld is a welded ladder type Bed Joint Reinforcement with 3.5mm outer wires, generally used as a structural product, also ideal for crack control.
Material – Manufactured from grade 304 S15 stainless steel. Also available in galvanised.
Behaviour in relation to fire – Non combustible (as defined in the national Building Regulations).
Durability – Excellent corrosion resistance and a service life of not less than 60 years.
Compliance – Vista Masonry Reinforcement conforms to BS 5628 : Part 2 2000.
