VHR Head Restraint

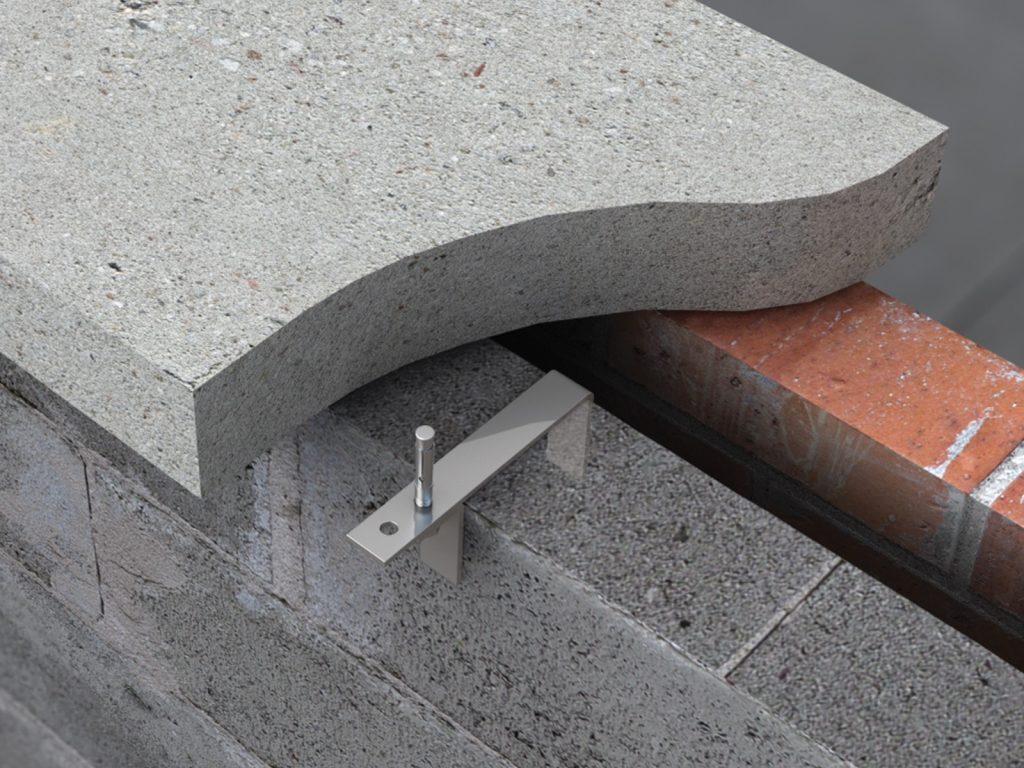

The VHR is a very simple, economical head restraint product. Twice holed to accommodate 100 or 140mm walls. Vertical movement can be accommodated only by allowing clearance between the top of the blockwork panel and the underside of the restraint angle. Can also be manufactured to fit 215mm blockwork.

Downloads

Code	Size	Units
VHR	For 100 – 140mm blockwork	50 Box
VHR-215	For 215mm blockwork	50 Box

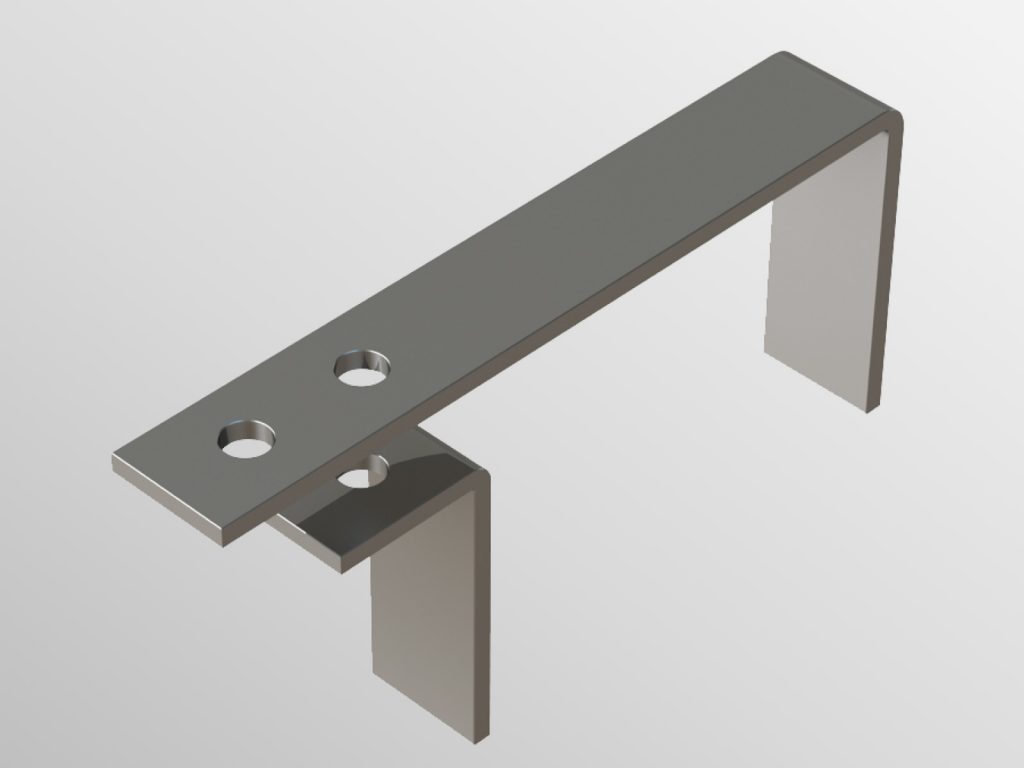

Design – Twice holed to accommodate 100 or 140mm walls. Vertical movement can be accommodated only by allowing clearance between the top of the blockwork panel and the underside of the restraint angle. Can also be manufactured to fit 215mm blockwork.
Material – Manufactured from grade 304 stainless steel.
Behaviour in relation to fire – Non combustible (as defined in the national Building Regulations).
Durability – Excellent corrosion resistance and a service life of not less than 60 years.
